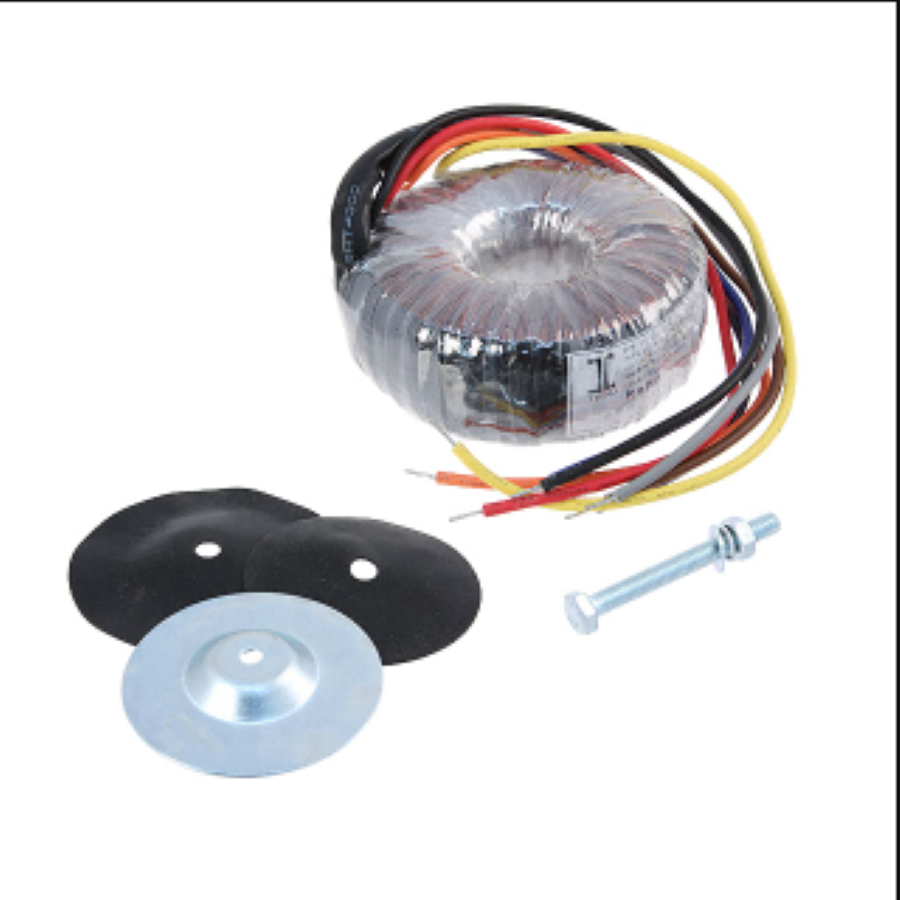

VPT24-1040
Manufacturer:
Triad Magnetics
Mfr.Part #:
VPT24-1040
Datasheet:
Description:
Transformers Through Hole
| Parameter | Value |
|---|---|
| Width | 32 mm |
| Termination | Wire Leads |
| Power Rating | 25 W |
| Height | 31.5 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 499.858792 g |
| Contact Plating | |
| Min Input Voltage | 115 V |
| Output Current | 1.04 A |
| Output Voltage | 24 V |
| Output Type | |
| Max Power Dissipation | 25 W |
| Max Output Current | 1.04 A |
| Max Input Voltage | 230 V |
| Number of Outputs | |
| Efficiency | 87 % |
| Schedule B | 8504314035 |
| Secondary Current | 2080 mA |
| Isolation Voltage | 4 kV |
| Height - Seated (Max) | 34 mm |
| Length | 32 mm |
| Current Rating | 1.04 A |
Stock: 25
Distributors
pcbx
pcbxUnit Price$13.90543
Ext.Price$13.90543
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $13.90543 | $13.90543 |
| 10 | $12.29730 | $122.97300 |
| 25 | $11.99637 | $299.90925 |
| 50 | $11.28401 | $564.20050 |
| 100 | $10.61395 | $1061.39500 |
